EDU System | Power Modules | Un Controlled Rectifier
Description:

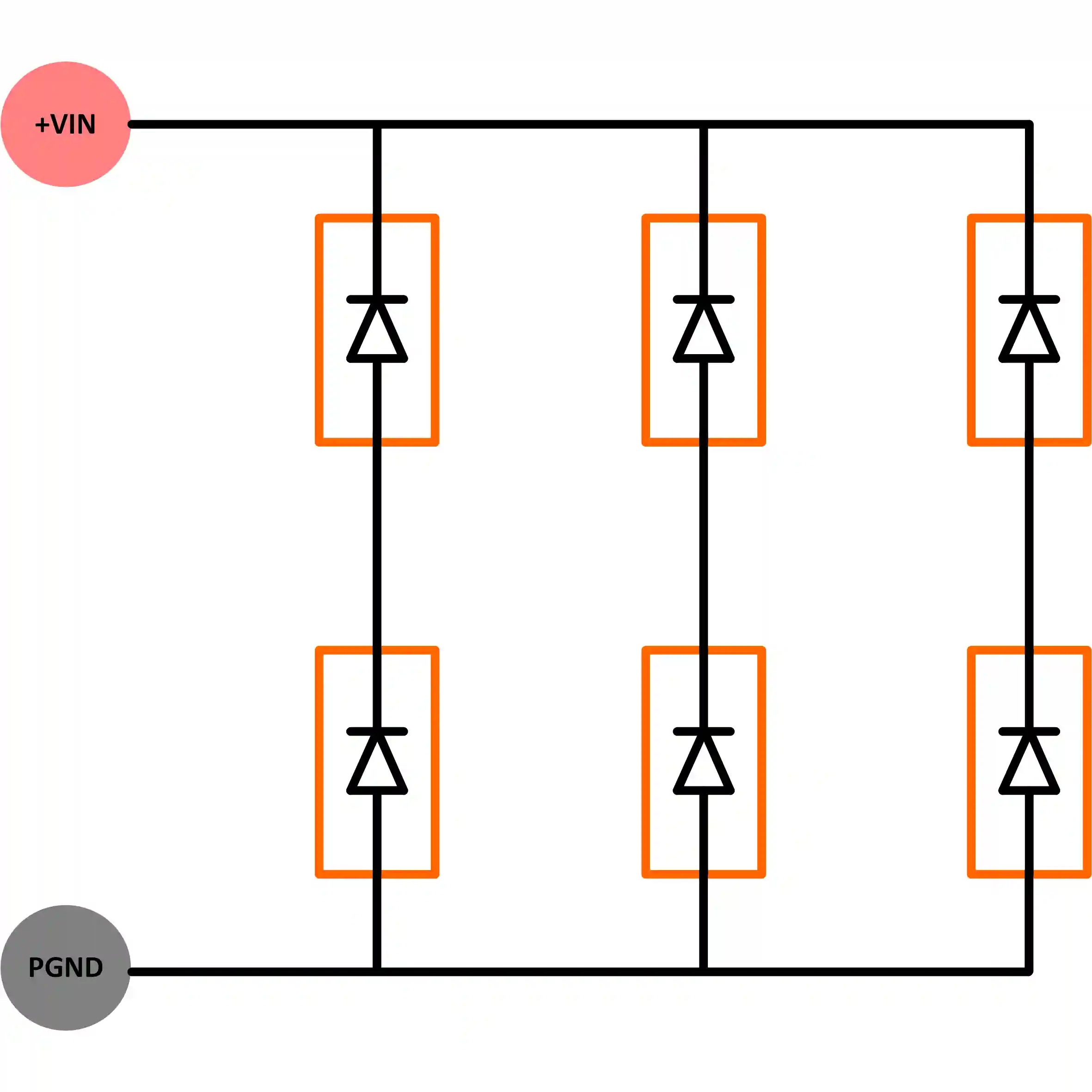

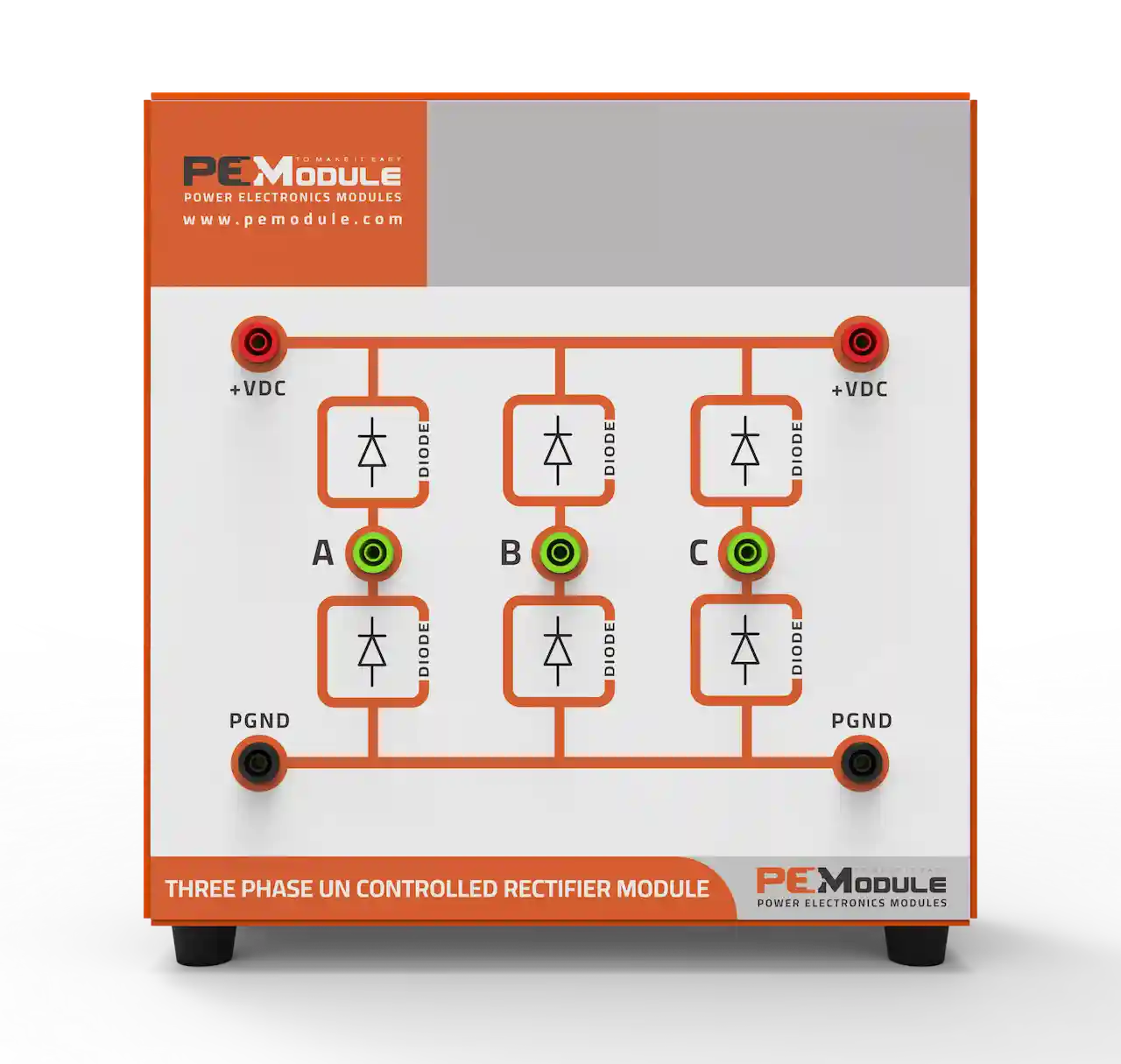

PEModule PLUGY EDU three-phase Uncontrolled Rectifier module includes 6X Diodes that can be standard, SIC diodes, or fast recovery diodes (based on selected modules) in a three-phase uncontrolled rectifier connection.
Main Features:
- Versatile Compatibility: Supports single-phase half-bridge, full-bridge, and three-phase inverters.
- Customizable: Available in standard, fast recovery, and SiC diodes.
- User-Friendly: Safety-shouldered connectors, open PWM terminals.
- Easy Maintenance: Modular design.
- Visible & Safe: Transparent back cover.
- Durable & Portable: Heavy-duty, compact steel enclosure.
Follow us

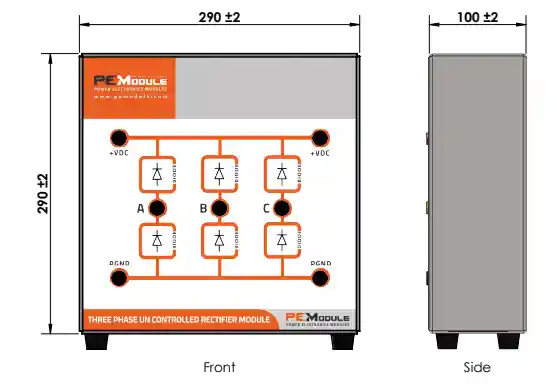

EDU Module Specifications
EDU Module Specifications
| Part No | Diode Module | Operating Ratings |
|---|---|---|
| PEM.EDU.REC.D.FR.01.A.1200.109 | Fast Recovery Diode | 1200V/109A |
| PEM.EDU.REC.D.FR.01.A.0600.80 | Fast Recovery Diode | 600V/80A |
| PEM.EDU.REC.D.FR.01.A.0200.69 | Fast Recovery Diode | 200V/69A |
| PEM.EDU.REC.D.SIC.01.A.1200.39 | SIC Schottky diode | 1200V/39A |
| PEM.EDU.REC.D.SIC.01.A.1200.25 | SIC Schottky diode | 1200V/25A |
| PEM.EDU.REC.D.SIC.01.A.0650.49 | SIC Schottky diode | 650V/49A |
| PEM.EDU.REC.D.S.01.A.1200.60 | Standard diode | 1200V/60A |
